Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Strongwin
  • Model Number: livestock feed production line
  • Type: Feed Pellet Machine
  • Voltage: 380V/50Hz or as per the customer's requirement
  • Power(W): 15kw
  • Dimension(L*W*H): Actual
  • Weight: 1200 kg
  • Certification: CE ISO
  • Warranty: One Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: livestock feed production line
  • Capacity: 300-500kg/h feed pellet production line
  • Main parts: hammer mill, pelletizer
  • Motor: Siemens
  • Application: livestock feed pellet production line
  • Raw material: wheat,corn,soybean,soyabean meal,etc
  • Usage: Animal Poultry Livestock Pellet Making Machine
  • Function: Aniaml Feed Puffed Pellet Machine
  • Machine thickness: 2mm thicker than standard machine
  • Pellet forming rate: 98%

Packaging & Delivery

Packaging Details 300kg/h portable livestock feed pellet production line
single machine:wood case packing
whole production line:by container
Delivery Time Shipped in 10 days after payment
Product Description

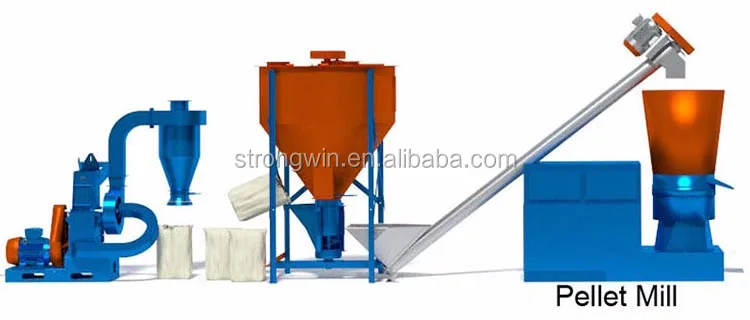

livestock feed pellet production line introduction

The livestock feed pellet production line is specially designed for small scale pellet production, which can meet the daily requirement of a small pellet production plant or family use. The livestock feed pellet production line is one foundation frame,saving much space and lowering your pellets production costs. Patented pelletizing technology guarantees a flexible applicability, satisfying customers with different requirements. Henan Strongwin can also customize feed pellet plants with other capacities.

Why to Choose livestock feed pellet production line?

For the users who want to run their own feed pellet production business, a complete feed pellet plant is absolutely necessary. There are two vital factors of such kind of livestock feed pellet production line
1. Profitable. Here, profits can be shown in two aspects. for simple home use pellets makers, they need to make sure the total cost of production should be much lower than the cost of buying pellets from other pellet sellers. For small pellet business owners, besides the cost-saving feature, they need to make sure whether the pellets made by the production line are qualified to sell.
2. Automation. The small scale production usually needs to make the consistent quality pellet at consistent speed. The high automation production can highly cut the costs of labor and increase the efficiency of pellet production. Our simple pellet production line usually requires one operator to ensure everything’s fine.

Application of Strongwin livestock feed pellet production line

Raw materials are corn,like Soybean,Maize,groats,grass powder.
Pellet diameter is 2mm,3mm,3.5mm,4mm,5mm,6mm,8mm,10mm,different pellets diameter is fit for different poultry growth stage,it is widely used in Chicken feed,Fish feed(sinking),pig feed and cattle feedstuff.
In order to make the raw materials continuous to put into the pellet machine,we design the belt conveyor to transfer the raw materials,in this way can save more labor force.

Technical Parameters
Technical Parameters of Strongwin livestock feed pellet production line
Machine Name
Model
Quantity
Yield
Power
Remarks
Feed Crusher
FSP420B
1
500kg/h
7.5kw
Crushing a wide range of materials,
such as soybeans, wheat, corn,
grass and so on.
Feed Grinder Mixer
9FH-1000
1
1000kg/h
crushing capacity 1t per hour,
mixer volume 2m³(1t)
Screw conveyor
TLSS16
1
1000kg/h
1.5kw
Flat die Pellet Machine
ZLSP260B
1
400-600kg/h
15kw
can make feed pellet for chicken,
pigs, cattle and other animal
Detailed Images

Animal Feed Crusher Machine - feed pellet production line

Feed Hammer Mill has the advantages of reasonable design,compact structure,safe,wear resistant,simple structure,compact assemble, feed crusher low price,reliable performance,low power consumption,high capacity,good quality of final products and low production cost,etc.It is combined with cutting and grinding,it can cut and grind branch and limb which diameter is between 10 to 200mm,meanwhile.

Screw Elevator -livestock feed production line

This kind of screw elevator is mainly used to elevate the materials from storage bin to feeder in the production line.
Features
♦ Large capacity, fast speed, hygienic and free from dust.
♦ The elevator size can be customized according on your requirements and your produce capacity.

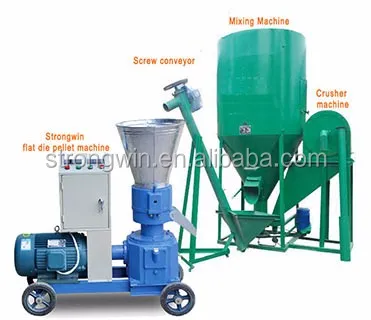

Feed Combined Mixer and Grinder -livestock feed pellet production line

This 2 in 1 animal feed combined mixer and grinder is vertical type which saves your room and saves your price cost and absorb the raw materials by itself,completely automatically feeding.
This animal feed mixer and grinder is mainly used to crushing and mixing kinds of raw materials to produce poultry feed. The crushing part is hammer mill grinder with feature of absorbing the raw materials automatically,the mixing part is vertical screw type,feeding raw materials through a screw conveyor.

Simple Feed Pellet Machine -livestock feed pellet production line

1. The flat die pellet mill is made of wear-resistant material thus having a long service life.
2. Simple structure, small area coverage, easy operation and maintenance.
3. Low consumption, competitive price and cost saving.
4. Electric feed flat die pellet mill can process various kinds of solid grain into small feed pellets for animals like fish, shrimps, chicken, rabbit, pig, etc.

Certifications
Packing & Delivery

Packing condition

Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine.

Tight the equipment in the truck without space to ensure no rubbing during the transportation.
